DSLogic Plus

Santa (nickname for TNT) has come to my town in advance, and has brought to me a brand new DSLogic Plus logic analyzer. [heavy breathing]

Finally I have a way to test my uber-fake environment, and watch if everything is running smoothly.

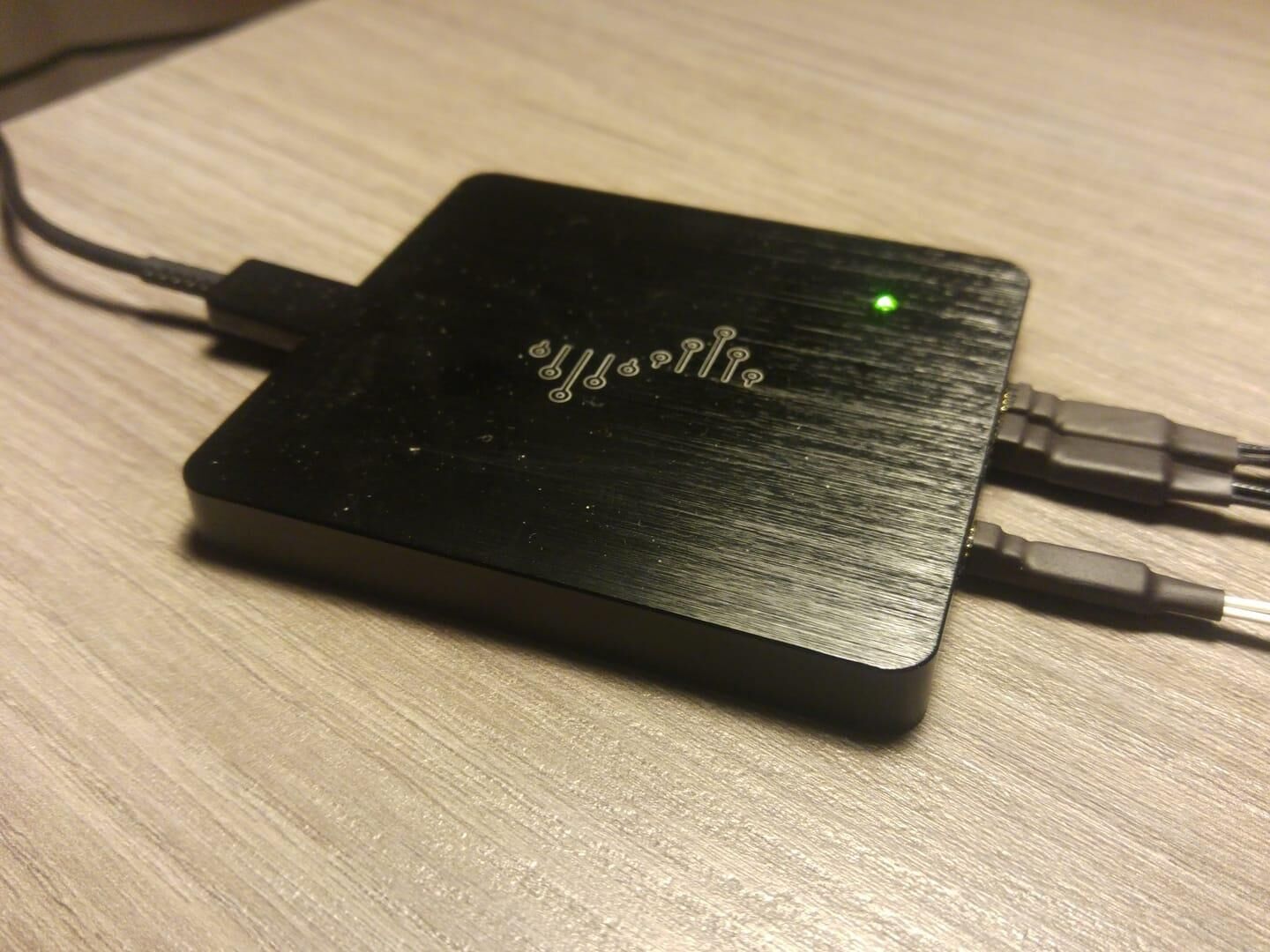

I have to admit that the construction quality is great. It came with a USB type C cable, fly wires and 16 hook clips, plus a nice black package. The driver and the software are the same thing, so just install and run. Just a tip for the Linux users: check libusb permissions. The software is simple, read the manual (just 50 pages with lots of images) and you are ready to analyze any piece of hardware without fear.

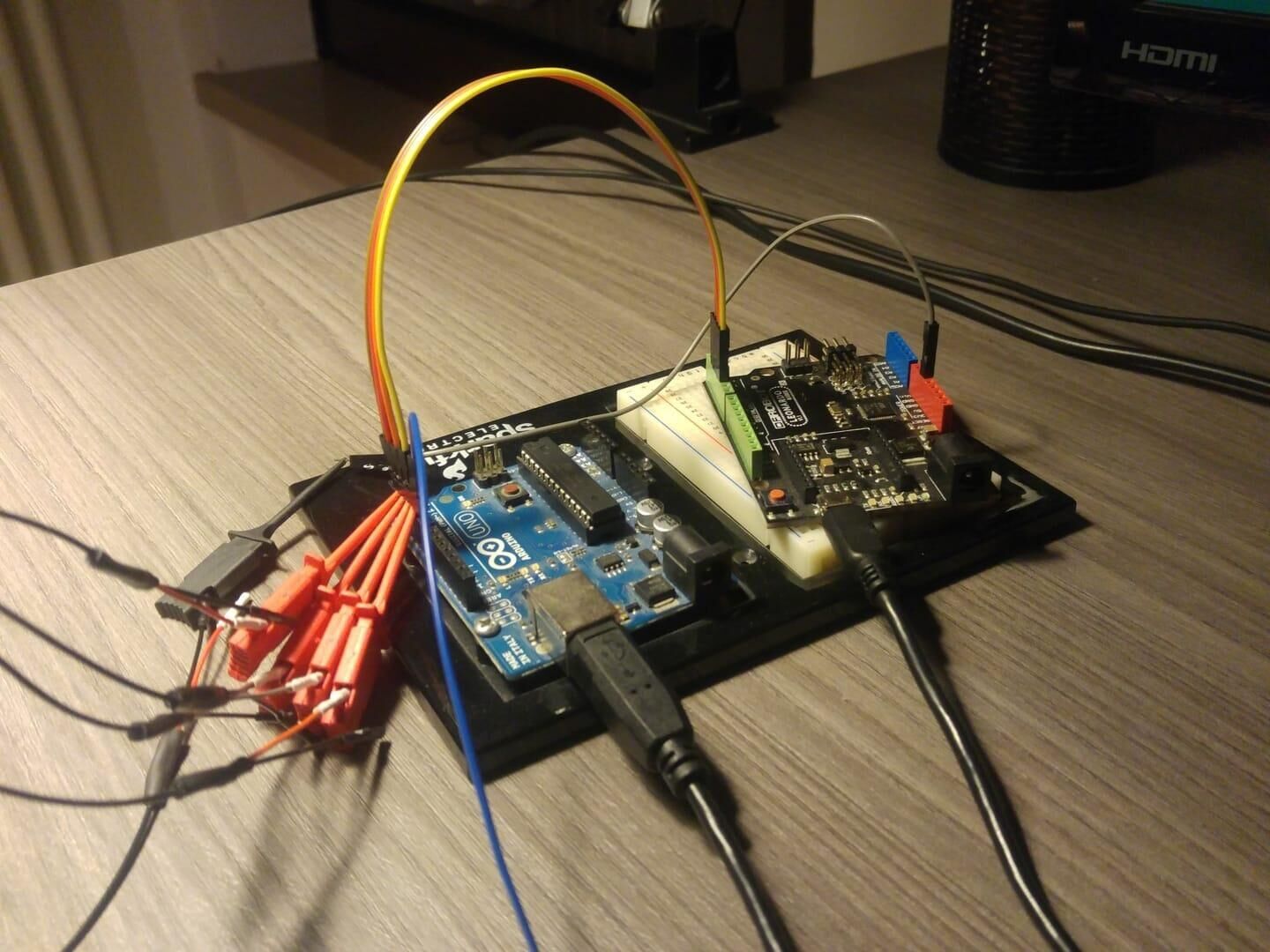

Back to my DS2Box project, I want to see the data trasmitted between my Arduino-s.

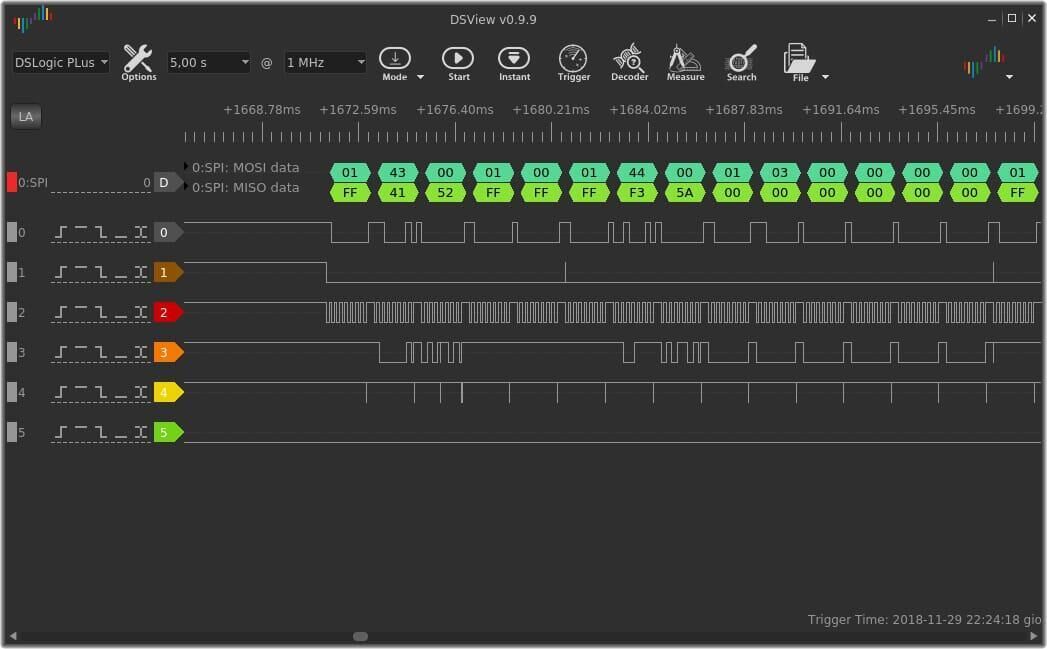

After some adjustments (scan frequency, V threshold, SPI decoder) I’ve found the way to read the SPI data.

Nothing wrong to fix, yess.
